Name: Shantui Dozing Machinery Hydraulic Crawler Bulldozer Dh08 for Sale
Brand: Shantui
Price: 49000 USD

Brand Name : Shantui

Model Number : DH08

Certification : CE, ISO9001: 2000

Place of Origin : China

MOQ : 1

Price : $49000

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : negotiable

Delivery Time : 8 work days

Packaging Details : bare bones

Model NO : DH08

Transmission : Hydraulic Transmission

Walking Mode : Crawler

Load and Unload Method : Front Discharge

Engine Power 74~147kw : 74~147kw

Specification : 4298*2060*2724 mm

Machine Weight : 7.9 Kg

Moving Type : Crawler Bulldozer

Dozing Capacity : 1.93cbm

Unique Selling Point : High Operating Efficiency

After Warranty Service : Video Technical Support

After-Sales Service Provided : Online Support

Trademark : SHANTUI

Contact Now

Shantui Dozing Machinery Hydraulic Crawler Bulldozer Dh08 for Sale

Engine	Model 8 type	Weichai WP4, China II emission; mechanical pump engine
	Net power	63kW/2200rpm
	Engine size	915x624x944 mm
	Piston displacement	4.5L
	Engine weight	550 kg
	Maximum torque	380 N.m@ 1400-1600 rpm
Walking hydraulic system	Type	Electronic control
	Traveling pump (Rexroth)	2
	Traveling motor (Rexroth)	2
	Traveling system pressure	40 Mpa
	Brake pressure	2.5 Mpa
Travel speed	Forward	0~9 km/h
Travel speed	Reverse	0~9 km/h
Undercarriage system	Carrier rollers	1 each side
	Track rollers	6 each side
	Width of track shoes	460 mm
	Pitch	154 mm
Hydraulic System	Type	2 way bhydraulic pilot control +1 way electric bhydraulic hybrid control
	Maximum pressure	21 MPa
	Working pump (Parker}	1
	Main valve (Hydrocontrol)	1
Blade	Blade type	VPAT-blade
	Dozing capacity	1.93 m3
	Blade width	2680 mm
	Blade height	950 mm
	Maximum drop below ground	515mm
	Maximum lfting height	750 mm
	Maximum tilt	350mm
	Turning angle	25

Shantui Dozing Machinery Hydraulic Crawler Bulldozer Dh08 for Sale

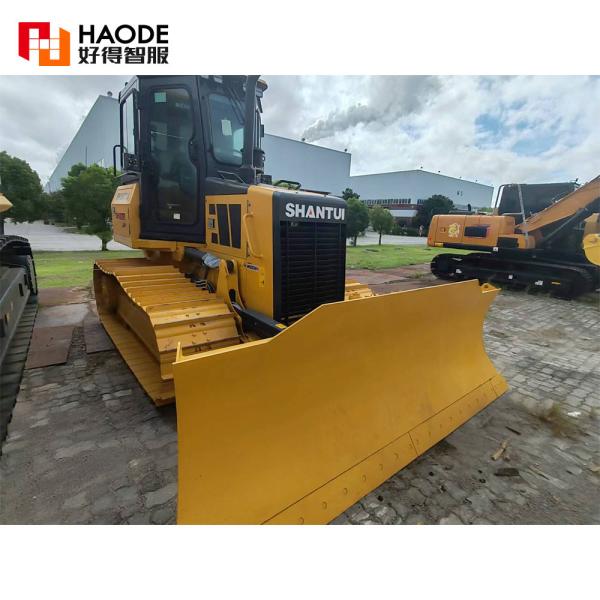

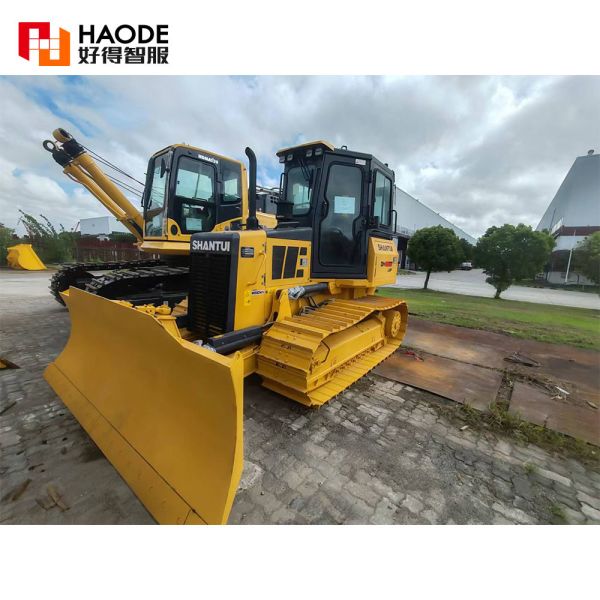

Shantui Dozing Machinery Hydraulic Crawler Bulldozer Dh08 for Sale Images
